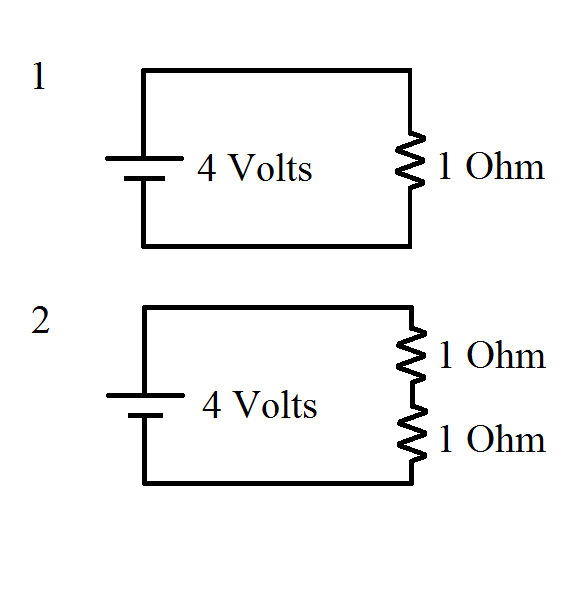

Circuit 1: 4 Volts and 1 Ohm

Circuit 2: 4 Volts and 2 Ohms

Regarding circuits, the number of equal resistors in series varies inversely to the voltage dropped across them. \\ In the first circuit diagram above, the 1 ohm resistor on the right has a voltage drop of 4 volts. In the second diagram there are 2 resistors of equal resistance. What is the voltage drop across one of those resistors?

Choose one answer
