Illustrated · 2 min

What is a Titration?

A titration is a technique to determine the unknown concentration of a substance. Most commonly this technique is used on acid/base reactions where an acid or base is added quantitatively (measured) into a base or acid (respectively). For example, if you have an unknown concentration of an acid solution, a known concentration of base can be added to the acid until the end of the reaction (endpoint) is reached. As long as the amounts of each are both known and the concentration of one, the unknown concentration can be determined.

Other types of reactions that titration is useful for include redox reactions and complexometric (complex formation) titrations.

Parts of a Titrantion

There are a few main parts of a titration:

  • Analyte: substance being analyzed for unknown concentration

  • Titrant: substance added to the analyte that has a known concentration

  • Titration apparatus: commonly this is a burette which is a glass instrument which can be filled with titrant. The burette allows control over the amount of titrant released and has measurements to track the amount added.

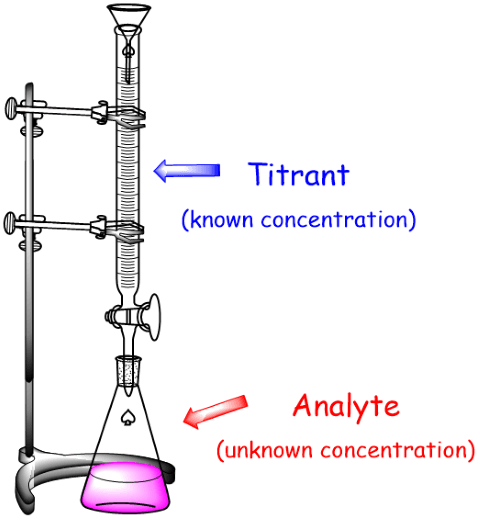

Image description: Titration set-up with burette, titrant, analyte, and stand.

Titration apparatus set-up

Image source: By Cassie Gates

Endpoint Determination

The endpoint is when the analyte has reacted completely with titrant. There are many way to determine endpoint and often it depends on the type of reaction being monitored. Some methods include monitoring pH, conductivity, precipitation (solid formation), and spectrophotometry (measurement of light and absorption). The most common endpoint determination method are colorimetric indicators. These indicators change color under certain conditions and when chosen correctly, indicate when the endpoint is reached. Acid/base indicators change color at a specific pH and if the pH of the endpoint is known, an indicator which changes color in that range is optimal.

Calculating Unknown Concentration

If the analyte and titrant react in a 1:1 mole ration, the unknown concentration can be determined with a simple equation: (C1)(V1)=(C2)(V2)(C_1)(V_1)=(C_2)(V_2) CC stands for concentration and VV stands for volume. If the unknown concentration is C1C_1, the known volume for the analyte is V1V_1. The known titrant concentration is C2C_2 and the volume to reach the end point is V2V_2.

Solve for C1C_1: (C1)=(C2)(V2)(V1)(C_1)=\frac{(C_2)(V_2)}{(V_1)}

If the mole ratio is not 1:1, stoichiometry calculations are used to determine the unknown concentration.

Titration Example

An unknown concentration of hydrochloric acid (HClHCl) is titrated with a known concentration of sodium hydroxide (NaOHNaOH). HClHCl is a strong acid and NaOHNaOH is a strong base, this means the endpoint will occur at pH=7 (neutral pH). The pH indicator phenolphthalein can be used which is colorless in acidic conditions (pH<7), but changes to pink at about pH=8 (basic pH). Since our indicator changes color just after the acid and base react completely, the volume added before the pink color change is the endpoint.

The NaOHNaOH is 1M (mol/L concentration) and 50.0 mL are added to 30.0 mL of HClHCl to reach the endpoint. The balanced chemical reaction equation is: HCl + NaOH → NaCl + H2OHCl\ +\ NaOH\ \rightarrow\ NaCl\ +\ H_2O Since, this is a 1:1 mole ratio we can calculate using: (C1)(V1)=(C2)(V2)(C_1)(V_1)=(C_2)(V_2) We can solve for C1C_1 or concentration of HClHCl: (C1)=(1M NaOH)(50.0mL NaOH)(30.0mL HCl)(C1)=1.67M HCl(C_1)=\frac{(1M\ NaOH)(50.0mL\ NaOH)}{(30.0mL\ HCl)}\\ (C_1)= 1.67M\ HCl

Video

(Video) What is a Titration: Acid-Base Titration

By Professor Dave Explains

In this video, professor Dave introduces titration as a way of determining acid and base concentration in a solution. Professor Dave then explains the equivalence point as the point where precisely enough base/acid is added to neutralize the amount of acid/base in a solution. You can use an indicator, a substance that turns into vivid color when the equivalence point is reached, to determine the equivalence point. Professor Dave finishes the video with an example showing how to calculate the concentration of a base in a solution by using titration.

Illustrated · 1 min

What is titration?

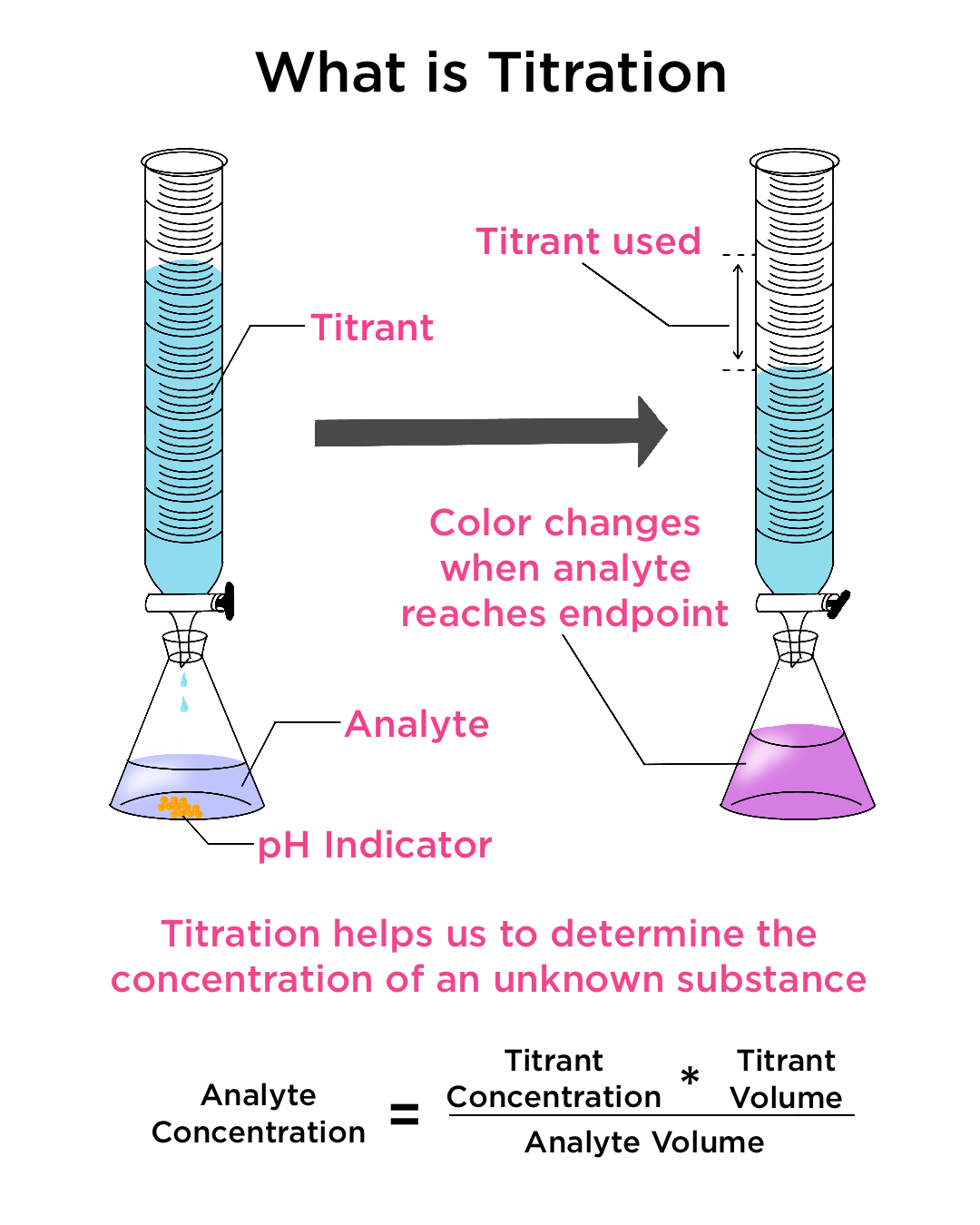

What is titration? Titration is a method that helps us to determine the concentration of an unknown substance. In the most common situation, an indicator is used to identify the endpoint of a reaction. The titrant concentration, volume, and analyte volume can be used to determine the analyte concentration.

Image Source: Leo Dong

In Acid/Base titration, the pH indicator changes color in a specific pH environment threshold. The color change means the reaction has reached the equivalence point, and no more titrant should be added.
